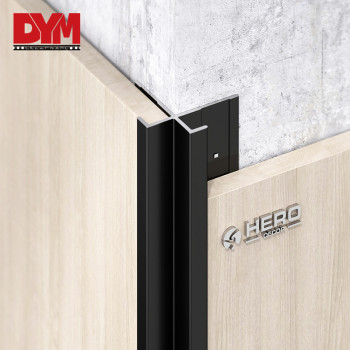

Aluminium Wall Panel External Corner Trim
- group name
- Panel Profile
- Min Order
- 500 piece
- brand name
- DYM Tile Trim Manufacturer
- model
- DYM-P-203
- Nearest port for product export
- foshan, guangzhou, shenzhen
- Delivery clauses under the trade mode
- FOB, EXW
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union, Cash
- update time
- Wed, 30 Sep 2026 23:39:19 GMT
Paramtents
Profile Structure Internal Corner
Length 2.5m/ 2.7m or Customized
Colors Silver, Matte Black, Champagne Gold, Custom RAL
Finish Anodized / Powder Coated / Brushed
Material Aluminum Alloy 6063-T5
Suitable Panels PVC, WPC, SPC, Fluted & Decorative Wall Panels
Thickness 0.8mm – 2.0mm (customizable)
Surface treatment Anodized / Brushed / Matte / Polished
OEM&ODM Custom Profile / Size / Finish / Packaging
Packging & Delivery
-
Min Order500 piece
Briefing
Wall panel slot joining profile for secure panel-to-panel connection and clean joint finishing. 6063-T5 aluminum with custom sizes, colors and finishes for PVC, WPC and decorative wall panels.
Detailed
DYM-P-351 Wall Panel Internal Corner Trim
Product Overview
Wall Panel Internal Corner Trim is an aluminum profile designed for clean 90° inside corner finishing in wall panel systems. It covers exposed panel edges at internal corners and creates a consistent transition between two wall surfaces.
Manufactured from 6063-T5 aluminum, the profile can be customized according to panel thickness, corner dimensions, installation requirements and project specifications. It is suitable for PVC, WPC, SPC, fluted and other decorative wall panel systems.
It helps control the corner transition, improve panel alignment and protect vulnerable panel edges while providing a consistent architectural appearance.
Specifications
ypical profile options include 6 mm, 8 mm, 10 mm, 12 mm and 15 mm panel-fitting dimensions, with other sizes available according to drawings or samples.
Standard lengths include 2.5 m and 2.7 m, while customized lengths can be developed according to packaging, transportation and installation requirements.
CODE |
DYM-C-001
|
DYM-C-002
|
DYM-C-003
|
DYM-C-004 | DYM-C-005 |
MM |
5
|
8
|
10
|
12 | 15 |
G |
0.121
|
0.123
|
0.126
|
0.129 | 0.134 |
Color Options or Customized
Available finishes include anodized, brushed, matte, polished and powder-coated surfaces. Standard colors include silver, gold and black, while customized colors such as RAL colors can be developed for specific product ranges and interior projects.
Matte Finish
Offers a low-reflective surface, ideal for a modern and minimalist look.
Polish Bright
Features a high-gloss surface, enhancing visual brightness and texture.
Brushed
Provides a fine-textured effect, adding tactile and visual depth.
Coating Texture
Available in various colors and textures to suit different design requirements.
Installation Guide
Position the internal corner trim along the planned 90° wall junction and ensure the profile is aligned vertically before fixing the wall panels. Insert or secure the panel edges into the corresponding receiving sections, then adjust both panels to maintain a straight and consistent corner line.
Applications of Wall Panel Inside Corner Trim
The profile is suitable for PVC, WPC, SPC, fluted and decorative wall panels, making it a practical joining component for wall panel manufacturers, distributors, contractors and architectural project procurement. The slot structure allows the edges of two wall panels to be positioned within the profile, forming a controlled connection between adjacent panels.
